APPLICATION Heavy Duty Service Shops

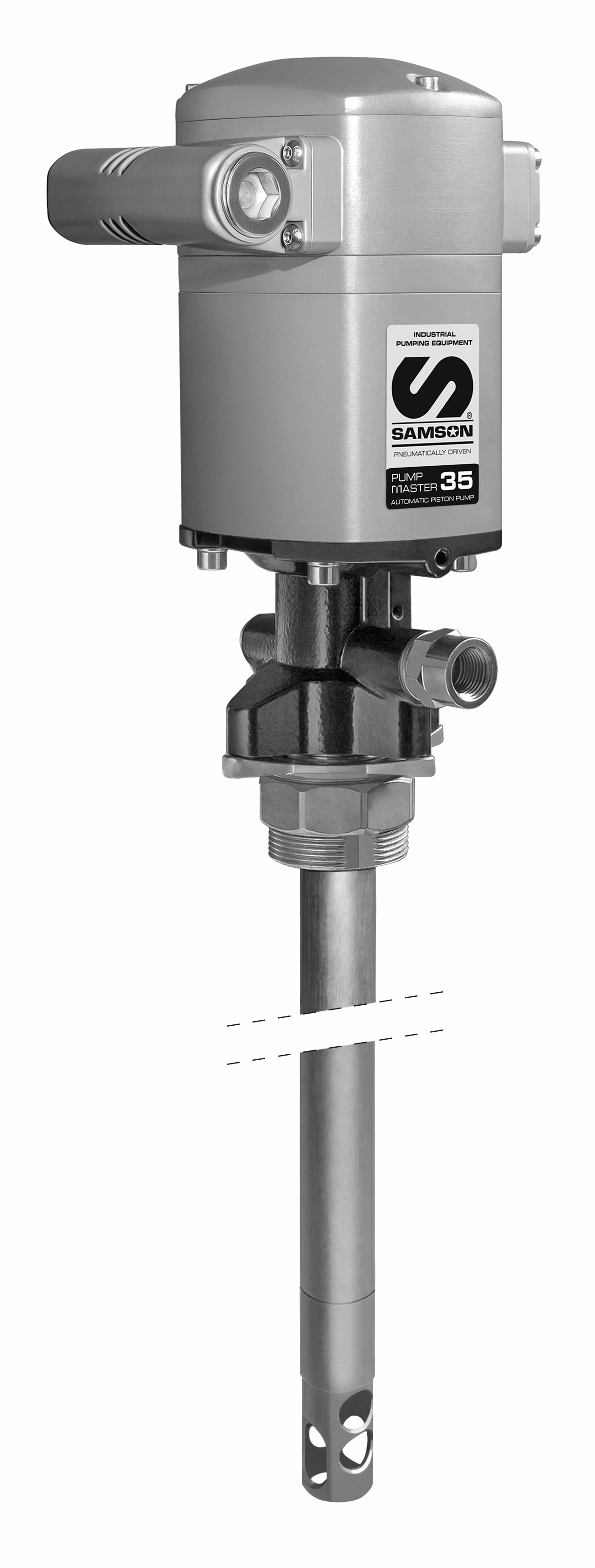

PumpMaster 35 60:1

Double acting air operated heavy-duty pumps that combine high pressure (60:1 ratio) and volume delivery. Recommended pump to deliver high viscosity greases in medium length systems that include multiple dispense points.

Pumps are available with three different suction tube lengths: 35 lb, 120 lb and 400 lb. Pumps include a height adjustable 2” bung adapter.

Fluids Handled

Part No.:

530 631 - PM35 60:1 35 lb pail with bung adaptor
530 621 - PM35 60:1 120 lb keg with bung adaptor
530 611 - PM35 60:1 400 lb drum with bung adaptor

Market Served:

Mining equipment maintenance, Heavy Duty Service Shops, Mass Transit Maintenance, Railroad, Fleet service, Lube Trucks, In-Plant

Product Specifications
60:1
1.1 lb/min (500 kg/min)
4.4 lb/min (2 kg/min)
20-145 psi (1.5-10 bar)
8,700 psi (600 bar)
3 15/100" (80 mm)
3 15/100" (80 mm)
15.9 scfm (450 NL/min)
3/8" NPTF
3/8" NPTF
Cast Iron, Hard Chromed Steel, Steel, UHMWPE, NBR, PTFE, Viton
80 dB
35 lb pail, 120 lb keg, 400 lb drum
1-2
250' (75 m)
Heavy Duty High Pressure
Industrial pump with handles, cylindrical body, and vertical shaft; mounted on a stand with a visible company logo on the upper section, photographed against a white background.

PumpMaster 45 40:1

High Flow double acting pumps with high pressure delivery for use in lubrication systems that require a combination of high flow and pressure delivery. Pumps can be used with grease up to NLGI-2 viscosity.

Fluids Handled

Part No.:

531 421 - PM45 40:1 120 lb keg, flange mounted
531 411 - PM45 40:1 400 lb drum, flange mounted
531 431 - PM45 40:1 Bulk Tote

Market Served:

Marine, Fleet service, In-Plant, Mining equipment maintenance, Heavy Duty Service Shops, Mass Transit Maintenance, Railroad

Product Specifications
40:1
7.5 lb/min (3.5 kg/min)
22 lb/min (11 kg/min)
29-200 psi (2-14 bar)
8,000 psi (560 bar)
4 1/2" (115 mm)
4" (100 mm)
26.5 scfm (750 NL/min)
1/2" NPTF
1/2" NPTF
Cast Iron, Steel, Hard Chromed Steel, UHMWPR, NBR
80 dB
120 lb keg, 400 lb drum, Bulk tote
4+
400' (125 m)
Heavy Duty High Flow
Industrial pump with handles, cylindrical body, and vertical shaft; mounted on a stand with a visible company logo on the upper section, photographed against a white background.

PumpMaster 45 70:1

High pressure double acting pump for use in applications requiring extra pressure output due to cold temperatures or when low air pressure could limit pump performance. Pumps can be used with grease up to NLGI-2 viscosity.

70:1 pressure ratio pumps are for use in applications requiring extra pressure output due to cold temperatures or when low air pressure could limit pump performance.

Fluids Handled

Part No.:

531 721 - PM45 70:1 120 lb keg, flange mounted
531 711 - PM45 70:1 400 lb drum, flange mounted
531 731 - PM45 70:1 Bulk Tote

Market Served:

Marine, Fleet service, Lube Trucks, In-Plant, Mining equipment maintenance, Heavy Duty Service Shops, Mass Transit Maintenance, Railroad

Product Specifications
70:1
4.5 lb/min (2 kg/min)
16.5 lb/min (7.5 kg/min)
29-100 psi (2-7 bar)
7,000 psi (490 bar)
4.5" (115 mm)
4" (100 mm)
33 scfm (925 NL/min)
1/2" NPTF
1/2" NPTF
Cast Iron, Steel, Hard Chromed Steel, UHMWPR, NBR
80 dB
120 lb keg, 400 lb drum, Bulk tote
4+
600' (175 m)
Heavy Duty High Pressure
