FLUID Windshield Wash Solution

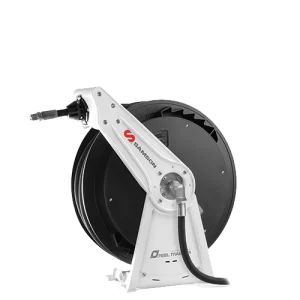

506 Series Medium Pressure

Aluminum base and arms with composite spool hose reel. Reel can handle up to 50′ x 1/2″ hose.

Fluids Handled

Part No.:

506 202 - 30' x 1/2" NPT(M)
506 222 - 50' x 1/2" NPT(M)

Market Served:

Service Shops, Fleet service, Lube Trucks, Car and truck dealers, General Manufacturing, Quick Lubes

Product Specifications
30', 50'
1/2"
1/2" NPT(M)
2,000 psi

506EC Enclosed Hose Reels Low Pressure

SAMSON 506EC overhead reels provide a clean appearance for multiple- reel banks enclosed in a steel metal cabinet. They combine a unique appearance and superior performance to meet the demands of your shop.
506EC Enclosed hose reel with hose capacity up to 50’ x 1/2” hose various colors available.

You must order reels, side panel kits, and end panel kits separately. Refer to tech sheet for details.

Fluids Handled

Part No.:

506 101EC - 30' x 3/8" NPT(M)
506 121EC - 50' x 3/8" NPT(M)
506 122EC - 50' x 1/2" NPT(M)

Market Served:

Service Shops, Car and truck dealers, Quick Lubes

Product Specifications
30', 50'
3/8", 1/2"
3/8" NPT(M), 1/2" NPT(M)
300 psi

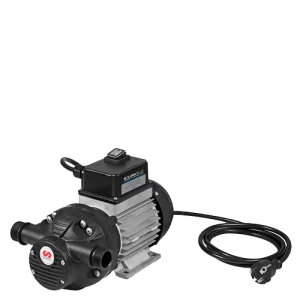

Electric Diaphragm 115 VAC

Electric Diaphragm pumps for use with windshield wash solution, antifreeze solution and DEF

Fluids Handled

Part No.:

560 215 - Electric Diaphragm 115 VAC

Market Served:

Railroad, Fleet service, Lube Trucks, In-Plant, Mining equipment maintenance, Car and truck dealers, Quick Lubes, Mass Transit Maintenance

Product Specifications
1" BSPP(M)
1" BSPP(M)
8 gpm (30 l/min)
23 psi (1.59 bar)
115 VAC
2 amps
IP55 (valid for outdoor use)
60" power cord w/three prong plug and off/on switch

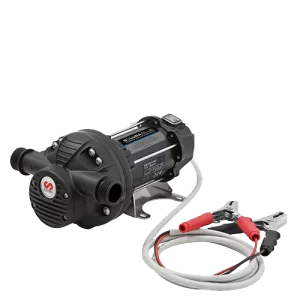

Electric Diaphragm 12 VDC

Electric Diaphragm pumps for use with windshield wash solution, antifreeze solution and DEF

Fluids Handled

Part No.:

560 212 - Electric Diaphragm 12 VDC

Market Served:

Railroad, Fleet service, Lube Trucks, In-Plant, Mining equipment maintenance, Car and truck dealers, Quick Lubes, Mass Transit Maintenance

Product Specifications
1" BSPP(M)
1" BSPP(M)
8 gpm (30 l/min)
23 psi (1.59 bar)
12 VDC
13 amps
IP55 (valid for outdoor use)
60" power cord w/three prong plug and off/on switch

PumpMaster 2 Nickel

Air operated piston pumps for use with pure antifreeze (glycol) and water based solutions of antifreeze and windshield wash. Not suitable for use with DEF.

Fluids Handled

Part No.:

332 120 - PM2 1:1 Universal stub pump

Market Served:

Railroad, Fleet service, Lube Trucks, In-Plant, Mining equipment maintenance, Car and truck dealers, Quick Lubes, Mass Transit Maintenance

Product Specifications
1:1
14.5 gpm (55 l/min)
3.6 gpm (13.5 l/min)
20-145 psi (1.5-10 bar)
1 1/2" (35 mm)
3" (75 mm)
1/4" NPTF
3/4" NPTF
1" NPTF
Nickel Costed Aluminum and Steel / Stainless Steel / Acetal / Polyurethane
Stub Pump with Height Adjustable Bung Adaptor

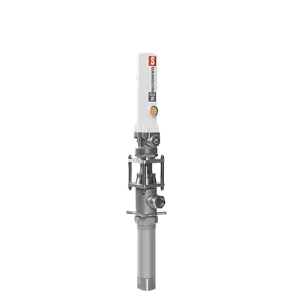

PumpMaster 2 Stainless Steel

Double acting air operated low pressure pumps for transfering lubricants. Pumps include height adjustable 2″ NPTM bung adapter for tank or drum bung mounting. Built in port for optional 609 007 pressure relief valve.

Fluids Handled

Part No.:

331 120 - PM2 1:1 Universal stub pump

Market Served:

Railroad, Fleet service, Lube Trucks, In-Plant, Mining equipment maintenance, Car and truck dealers, Quick Lubes, Mass Transit Maintenance

Product Specifications
1:1
14.5 gpm (55 l/min)
3.6 gpm (13.5 l/min)
20-145 psi (1.5-10 bar)
1 1/2" (35 mm)
3" (75 mm)
1/4" NPTF
3/4" NPTF
1" NPTF
PTFE / Viton / Stainless Steel
Stub Pump with Height Adjustable Bung Adaptor

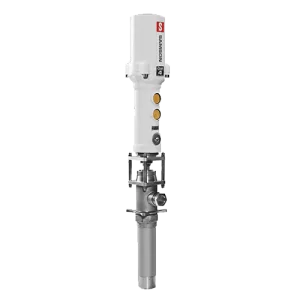

PumpMaster 4 Stainless Steel

Double acting air operated medium pressure high volume pumps for dispensing lubricants in medium size installations. Pumps include height 2″ NPTM adjustable bung adaptor for drum and tank bung mounting. Built in port for optional (PN 609 007) pressure relief valve.

Fluids Handled

Part No.:

333 120 - PM4 3:1 Universal stub pump

Market Served:

Railroad, Fleet service, Lube Trucks, In-Plant, Mining equipment maintenance, Car and truck dealers, Quick Lubes, Mass Transit Maintenance

Product Specifications
3:1
10.6 gpm (40 l/min)
6.6 gpm (25 l/min)
20-145 psi (1.5-10 bar)
2 1/2" (60 mm)
3" (75 mm)
3/8" NPTF
3/4" NPTF
1" NPTF
PTFE / Viton / Stainless Steel
Stub Pump with Height Adjustable Bung Adaptor

2836 UL Rated Aluminum Pump 46 GAL/MIN 1” Ported

Conventional air operated diaphragm pumps move the fluid around the outside of the diaphragm and compressed air acts on the inside surface of the diaphragms.

Fluids Handled

Part No.:

2836 - 40 Aluminum 46 gal/min

Market Served:

Railroad, Fleet service, Lube Trucks, In-Plant, Mining equipment maintenance, Car and truck dealers, Quick Lubes, Mass Transit Maintenance

Product Specifications
1:1
40 gal/min (150 l/min)
21 psi (1.4 bar)
100 psi (7 bar)
3/16"
3/8" NPT(F)
1" NPT(F)
1" NPT(F)
Aluminum / Hytrel

2835 Aluminum Pump 46 GAL/MIN 1” Ported

Conventional air operated diaphragm pumps move the fluid around the outside of the pump and compressed air acts on the inside face of the diaphragms.

Fluids Handled

Part No.:

2835 - Aluminum 46 gal/min

Market Served:

Railroad, Fleet service, Lube Trucks, In-Plant, Mining equipment maintenance, Car and truck dealers, Quick Lubes, Mass Transit Maintenance

Product Specifications
1:1
46 gal/min (115 l/min)
18'
21 psi (1.4 bar)
100 psi (7 bar)
3/16"
3/8" NPT(F)
1" NPT(F)
1" NPT(F)
Aluminum / Hytrel

Directflo 50 – 1/2″ Ported

Directflo diaphragm pumps the fluid through the center of the pump and compressed air acts on the outside face of the diaphragms.

Fluids Handled

Part No.:

552 164 - DF50 Polypropylene
552 164A - DF50 Polypropylene for DEF
552 010 - DF50 Aluminum
552 030 - DF50 Aluminum
552 124 - DF50 Polypropylene Dual Inlet for Mixing

Market Served:

Railroad, Fleet service, Lube Trucks, In-Plant, Mining equipment maintenance, Car and truck dealers, Quick Lubes, Mass Transit Maintenance

Product Specifications
1:1
14 gal/min (52 l/min)
26' (8m)
22 psi (1.5 bar)
115 psi (8 bar)
1/8" (3 mm)
3/8" NPS(F)
1/2" NPT(F)
1/2" NPT(F)
Polypropylene / PTFE / TPE / Aluminum / Stainless steel / Acetal

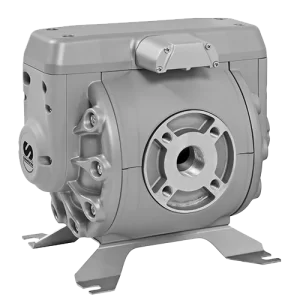

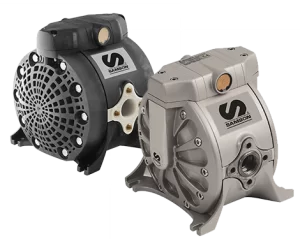

Directflo 100 – 1″ Ported

Directflo diaphragm pumps the fluid through the center of the pump and compressed air acts on the outside face of the diaphragms.

Fluids Handled

Part No.:

551 164 - DF100 Polypropylene
551 164A - DF100 Polypropylene for DEF
551 030 - DF100 Aluminum NBR Check Balls
551 010 - DF100 Aluminum Acetal Check Balls

Market Served:

Railroad, Fleet service, Lube Trucks, In-Plant, Mining equipment maintenance, Car and truck dealers, Quick Lubes, Mass Transit Maintenance

Product Specifications
1:1
28 gal/min (106 l/min)
23' (7 m)
22 psi (1.5 bar)
115 psi (8 bar)
3/16" (4 mm)
3/8" NPS(F)
1" NPT(F)
1" NPT(F)
Polypropylene / Buna-N / Hytrel / Aluminum / Stainless steel / Acetal

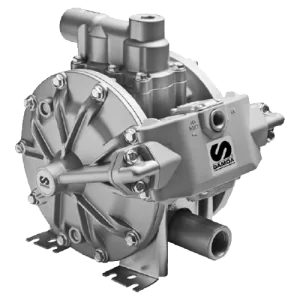

Directflo 200 – 1″ Performance Series

Typical applications for polypropylene pumps are transferring and dispensing of Windshield wash and antifreeze solutions and AdBlue®/DEF.

Metal pumps have an Aluminum air motor. Typical applications for these pumps are transferring and dispensing of antifreeze solutions, lubricants, diesel, and waste oil evacuation.

Pump inlet and outlet ports can be mounted in different positions for increased installation versatility.

Fluids Handled

Part No.:

555 030 - DP200 Aluminum Buna-N/Acetal
555 164 - DP200 Polyproylene TPE/PTFE

Market Served:

Railroad, Service Shops, Agriculture, Lube Trucks, In-Plant, Mining equipment maintenance, Car and truck dealers, Mass Transit Maintenance

Product Specifications
1:1
53 gal/min (200 l/min)
26' (8 m)
22 (1.5 bar)
115 psi (8 bar)
1/4" (6 mm)
3/8" NSP(F)
1" ANSI B16.5 150 lb flange
1" NPT(F)
1" ANSI B16.5 150 lb flange
1" NPT(F)
Aluminum / Hytrel / Acetal / Buna-N / Polypropylene

Directflo 250 – 1 1/2″ Ported

Directflo diaphragm pumps the fluid through the center of the pump and compressed air acts on the outside face of the diaphragms.

Fluids Handled

Part No.:

554 030 - DF250 Aluminum Buna-N Check Balls

Market Served:

Railroad, Fleet service, Lube Trucks, In-Plant, Mining equipment maintenance, Car and truck dealers, Quick Lubes, Mass Transit Maintenance

Product Specifications
1:1
66 gal/min (250 l/min)
26' (8 m)
22 psi (1.5 bar)
115 psi (18 bar)
1/4" (6 mm)
1/2" NPSM(F)
1 1/2" NPT(F) & ANSI 1" B16.5 150 lb flange
1 1/2" NPT(F) & ANSI 1" B16.5 150 lb flange
Aluminum / Buna-N / Stainless Steel
