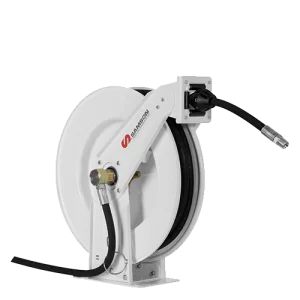

1400 Series Low Pressure

Double-pedestal arm steel hose reel can hold up to 40’ x 1/4” hose.

Fluids Handled

  • Water
  • Air

Part No.:

1413 - 40' x 3/8" NPT(M)
1417 - 40' x 1/2" NPT(M)

Markets Served:

Quick Lubes, Service Shops, Car and truck dealers, General Manufacturing

Product Specifications

• Fatigue resistant steel spring for years of durable performance and even load when pulling and recoiling the hose.
• Full metal double pedestal arm construction, epoxy powder coated for increased wear resistance.
• Forged brass shaft ensures a leak free operation.
• Hose reels with hose include 30″ inlet hose.

40'
3/8", 1/2"
3/8" NPT(M), 1/2" NPT(M)
300 psi

1400 Series Medium Pressure

Double-pedestal arm steel hose reel can hold up to 40’ x 1/4” hose.

Fluids Handled

  • Antifreeze
  • Synthetic and Mineral Oils
  • Windshield Wash Fluid

Part No.:

1428 - 30' x 1/2" NPT(M)
1426 - 40' x 1/2" NPT(M)

Markets Served:

Car and Truck Dealerships, Service Shops, General Manufacturing, Quick Lubes

Product Specifications

• Fatigue resistant steel spring for years of durable performance and even load when pulling and recoiling the hose.
• Full metal double pedestal arm construction, epoxy powder coated for increased wear resistance.
• Forged brass shaft ensures a leak free operation.
• Hose reels with hose include 30″ inlet hose.

30', 40'
1/2"
1/2" NPT(M)
2,000 psi

1400 Series High Pressure

Double-pedestal arm steel hose reel can hold up to 40’ x 1/4” hose.

Fluids Handled

  • Grease

Part No.:

1432 - 40' x 1/4" NPT(M)
1435 - 40' x 3/8" NPT(M)

Markets Served:

Car and Truck Dealerships, Service Shops, General Manufacturing, Quick Lubes

Product Specifications

• Fatigue resistant steel spring for years of durable performance and even load when pulling and recoiling the hose.
• Full metal double pedestal arm construction, epoxy powder coated for increased wear resistance.
• Forged brass shaft ensures a leak free operation.
• Hose reels with hose include 30″ inlet hose.

40'
1/4", 3/8"
1/4" NPT(M), 3/8" NPT(M)
5,000 psi, 4,000 psi
